HWE SUSPENDED TRASH RAKE CLEANING MACHINE

Efficient Removal of Floating Debris from Intake Channels

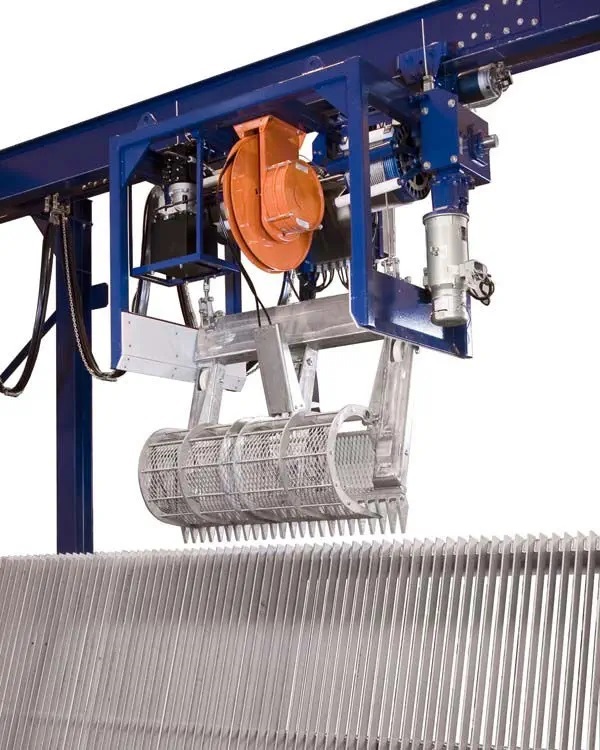

Suspended Trash Rake is a mechanically operated debris removal system designed for cleaning coarse screens installed in water intake structures, pumping stations, irrigation canals, raw water pumping stations, and wastewater treatment plants. The equipment effectively removes floating and accumulated debris such as leaves, plastics, wood pieces, rags, weeds, and other solids from the screen surface, ensuring uninterrupted flow and protecting downstream equipment.

Working Principle

The Suspended Trash Rake travels along the screen face and automatically engages with the accumulated debris. The rake teeth penetrate through the screen openings and lift the collected screenings above the water level. The debris is then discharged into a collection hopper, conveyor, or container for disposal. The system can be operated manually, semi-automatically, or fully automatically depending on project requirements.

Key Features

• Heavy-duty construction for continuous operation
• Suitable for wide and deep intake channels
• Effective removal of floating and submerged debris
• Low maintenance and reliable performance
• Corrosion-resistant construction in SS304, SS316, or painted carbon steel
• Available with automatic control panel and level sensors
• Custom-designed for various screen widths and depths
• Smooth and safe operation with overload protection

Applications

• Water Treatment Plants (WTP)
• Sewage Treatment Plants (STP)
• Effluent Treatment Plants (ETP)
• Raw Water Intake Structures
• Pumping Stations
• Irrigation Canals
• Hydroelectric Power Plants
• Industrial Water Intake Systems

Technical Specifications

Benefits

✔ Prevents clogging of intake screens
✔ Reduces manual cleaning requirements
✔ Protects pumps and downstream equipment
✔ Ensures continuous plant operation
✔ Suitable for large-scale municipal and industrial installations
✔ Improves operational efficiency and safety
